Accessory

HOME > Accessory

Accessory

Resettable counter

 It add the second character counter which can reset to "0" accumulated value. You can read the volume measured at each site.

Resettable counter More Information

Da pulse detector

 With a built-in pulse detector, output can be sent to external equipment (e.g. counter or computer).
Various pulse rates are available, please state your desired rate when ordering.

Da pulse detector More Information

Intrinsic safety barrier

 Similar to the Da pulse detector, but with a safety barrier. This enables data collection when measuring explosive gases.

Intrinsic safety barrier More Information

Temperature sensor

 ・Resistance temperature sensor(Pt 100Ω) or Thermocouple.
 ・Sensor is available for various gasess and measuring
  environment.(The protecter adopt SUS316)
 ・Digital display has analog output that can be connected
  to the data logger(※option)

Temperature sensor

Pressure sensor

 Pressure sensor can be connected to a gas meter, for collection of gas pressure data.
Various ranges are available, also for high pressure.

Pressure sensor

Digital Manometer

 ・Digital manometer can be connected to the gas meter directly,
  also it is available for various gasess.
 ・Due to driven by AA battery, it can be used after connecting soon.
 ・Digital manometer has a flexible display to chack easily and
  can be connected to the gas meter various angle.

Digital Manometer

U type glass tube for 1kPa manometer

 Replacement tube for 1kPa manometer (standard for W-NK type wet gas meter). Replacement must be done according to the manual.

U type glass tube for 1kPa manometer The method of replacing How to use scale

Stick type thermometer with protector

 Standard attachment for W-NK type wet gas meter. It can also be attached to DC and DS type dry gas meters. The new type of thermometer can not be inserted into the old type of protector. Thus, if you need to replace an old thermometer, please also change the protector.

Stick type thermometer with protector

3.6kPa manometer

 Standard attachment for Reference Standard, calibration and W-NT type wet gas meter.

3.6kPa manometer How to use scale

1.8kPa U type glass manometer

 Optional accessory for WS-1A type wet gas meter and DC/DS type dry gas meters.

1.8kPa U type glass manometer How to use scale

3.6kPa U type glass manometer

 Optional accessory for WS-1A type wet gas meter and DC/DS type dry gas meters.

3.6kPa U type glass manometer How to use scale

Inlet and outlet connector

 Standard attachment for DC type dry gas meter and WS-1A wet gas meter.
The diameter of the connector can be changed on request. However, measurement range and calibration result could change as a result of this. Please contact a sales representative if you wish to make this change.

In & outlet union

Carry case

 Made of aluminum, giving it good durability. The inside of the case has polyurethane as buffer material. The DC version has a shoulder strap for easy carrying.

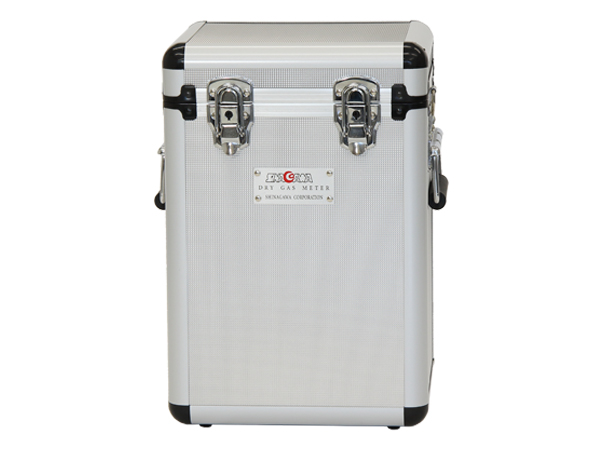

Carry case STANDARD TYPE

For DC

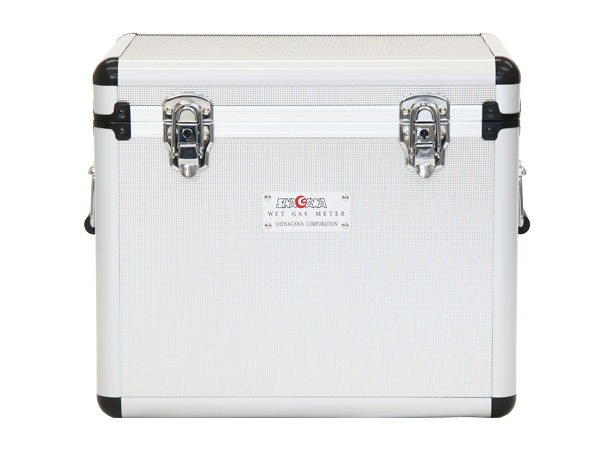

Carry case STANDARD TYPE

For W-NK

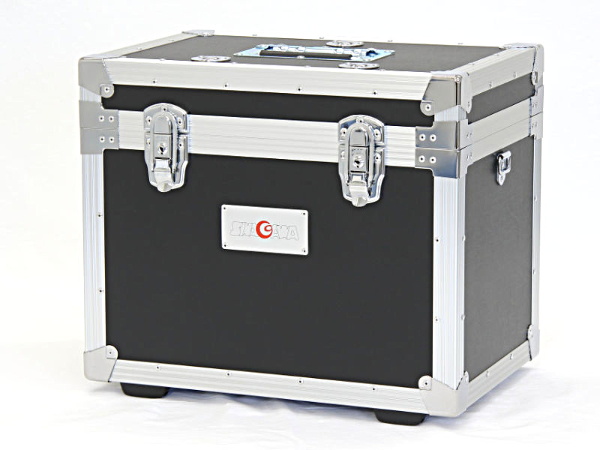

Carry case(HARD CASE TYPE)

 We made some improvements to the standard type.
It has a tremor measure and better durability during measuring.
※Available for W-NK-1/2/2.5/5

Carry case(HARD CASE TYPE)

Carry case(HARD CASE TYPE)

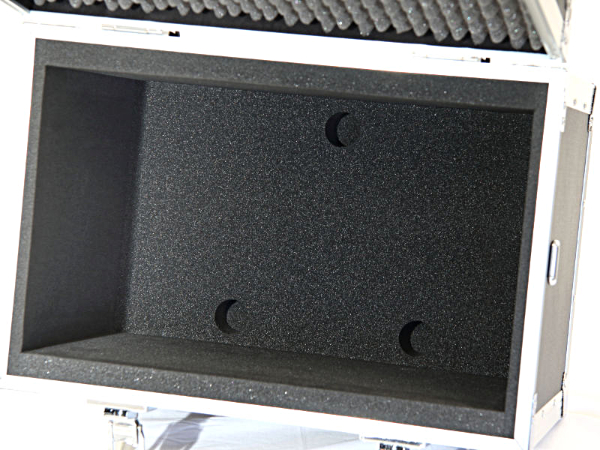

Inside

Corrosion inhibitor for wet gas meter

 The sealing liquid used in wet gas meters is usually water. However, long-term use can lead to corrosion, resulting in inaccuracy in measurements. This corrosion inhibitor allows the meter to be used longer before corrosion occurs. Please contact our sales department for details on use, and safety specification sheet.

Corrosion inhibitor for wet gas meter
